Description

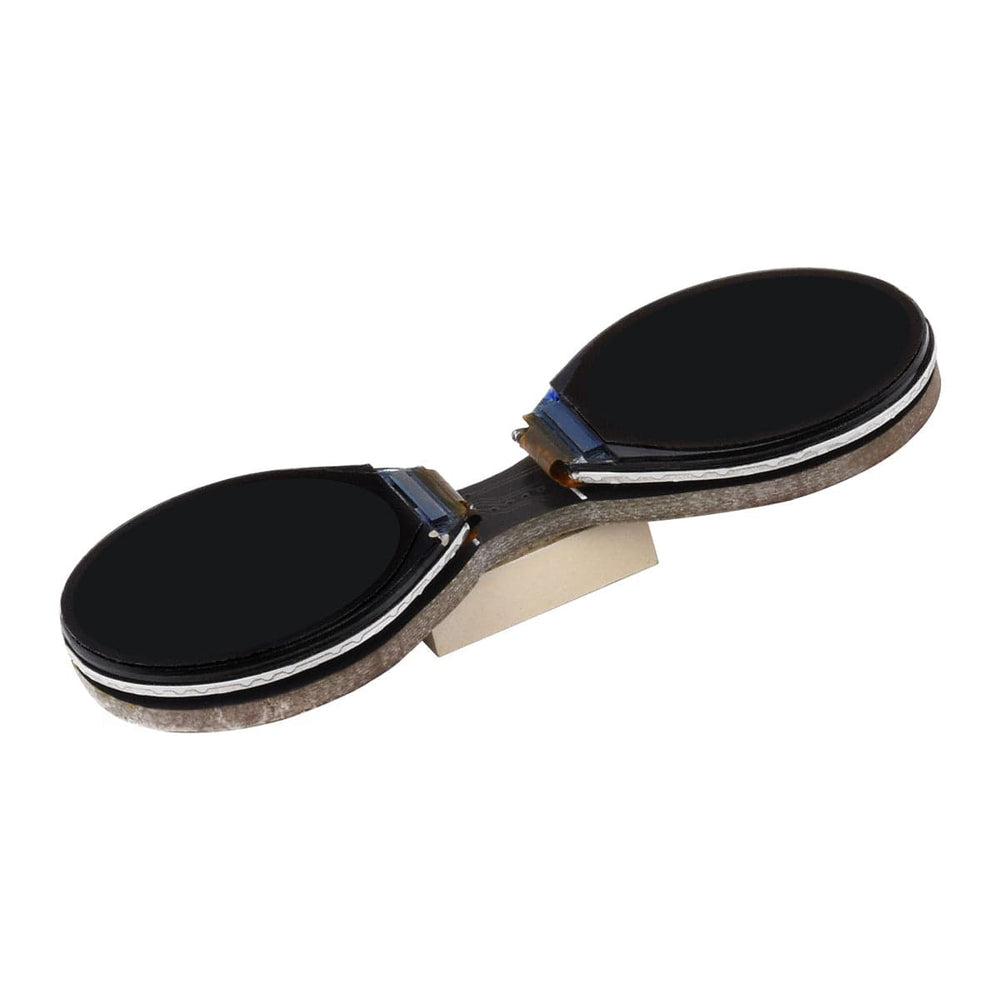

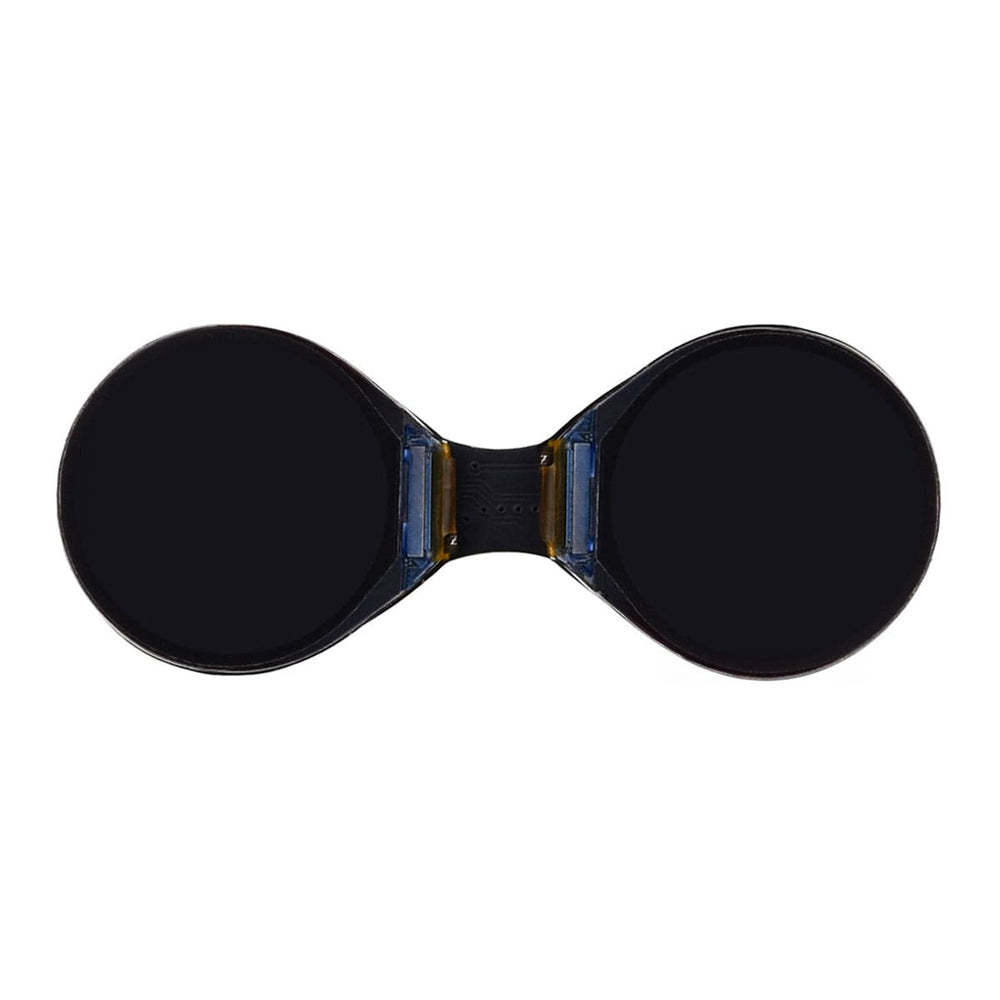

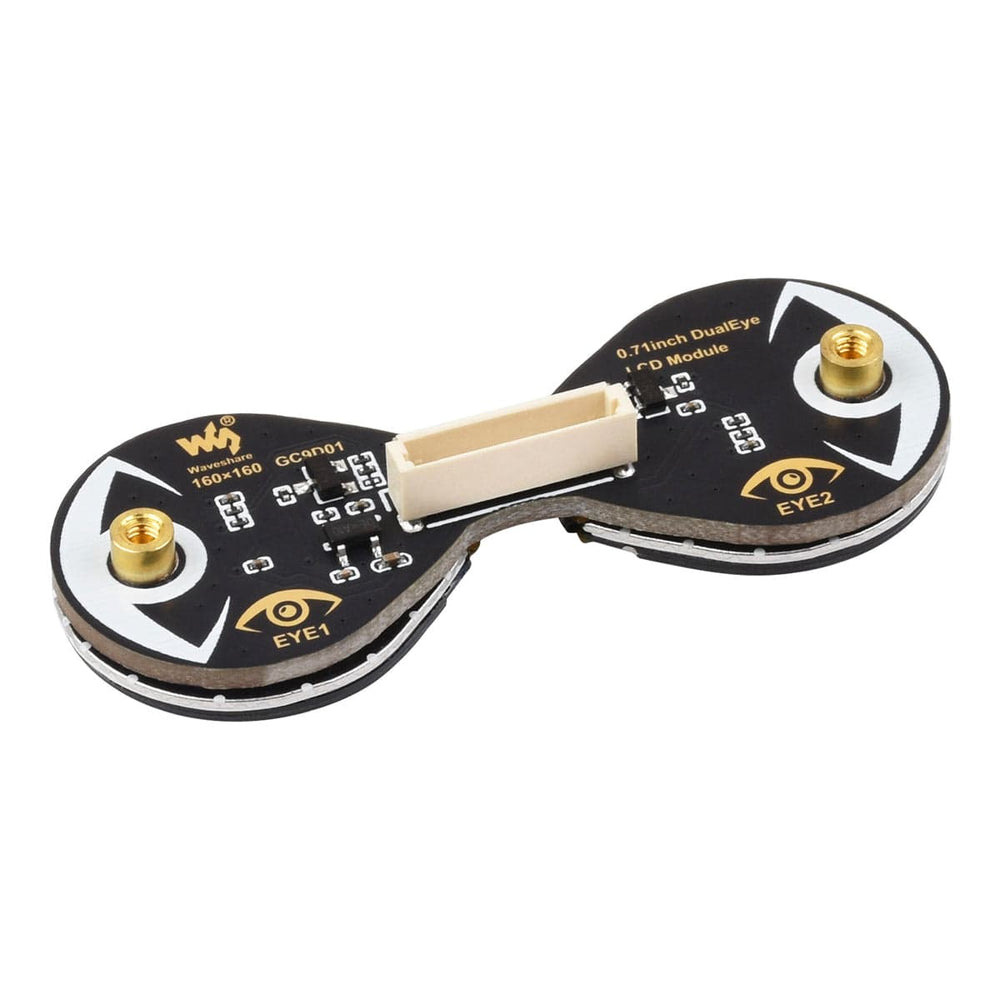

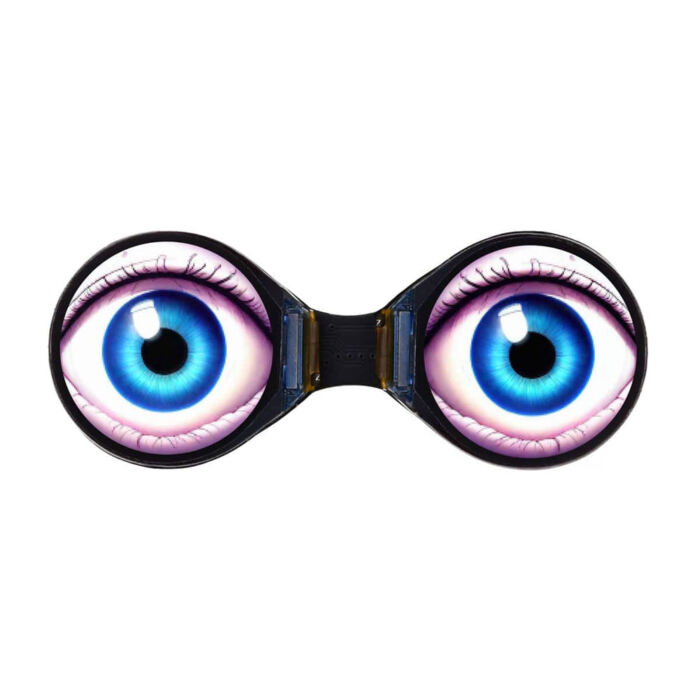

0.71inch Double Eye Round IPS LCD Display (160 x 160)

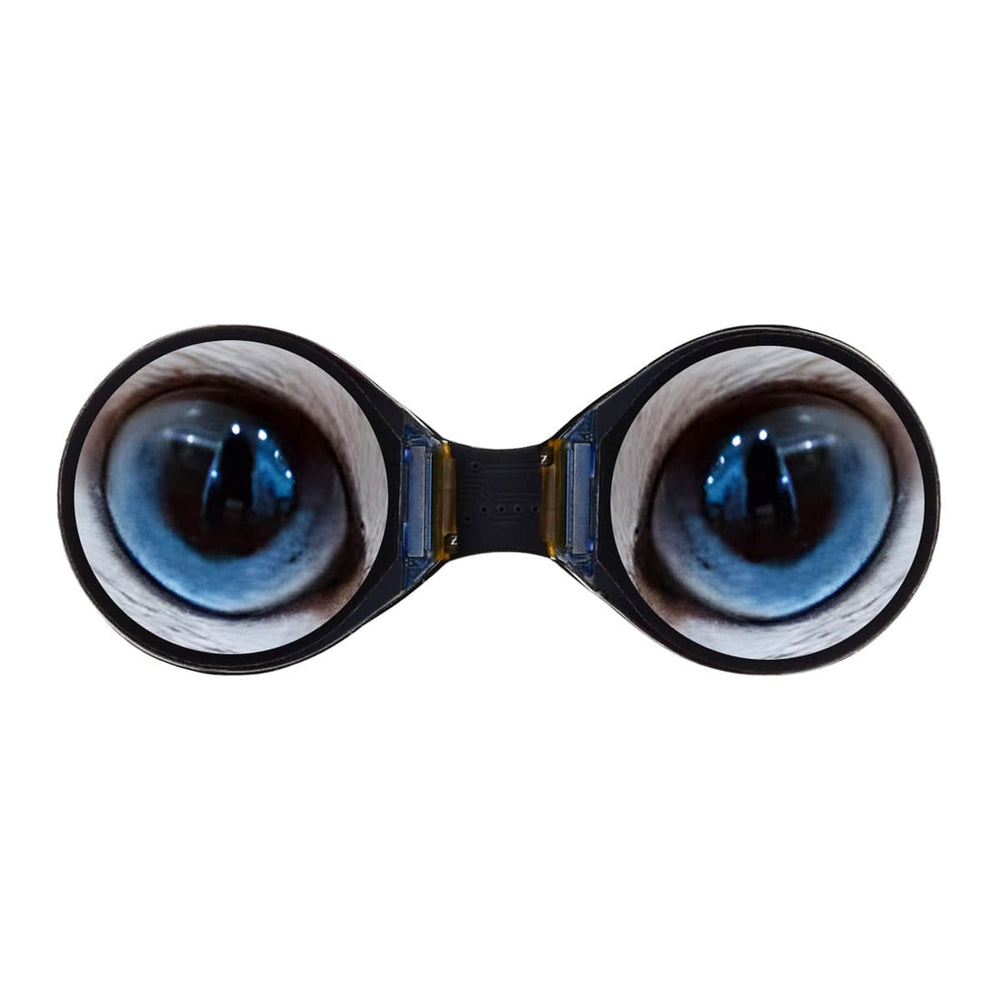

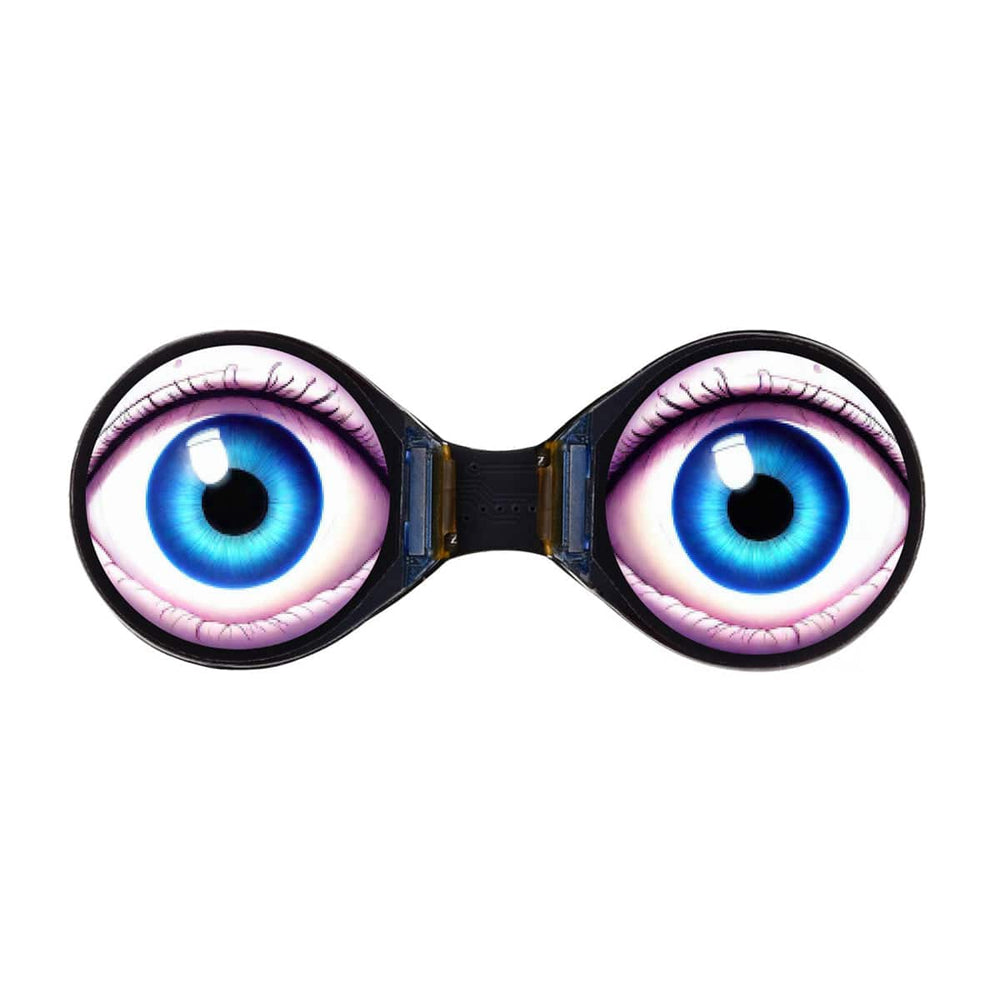

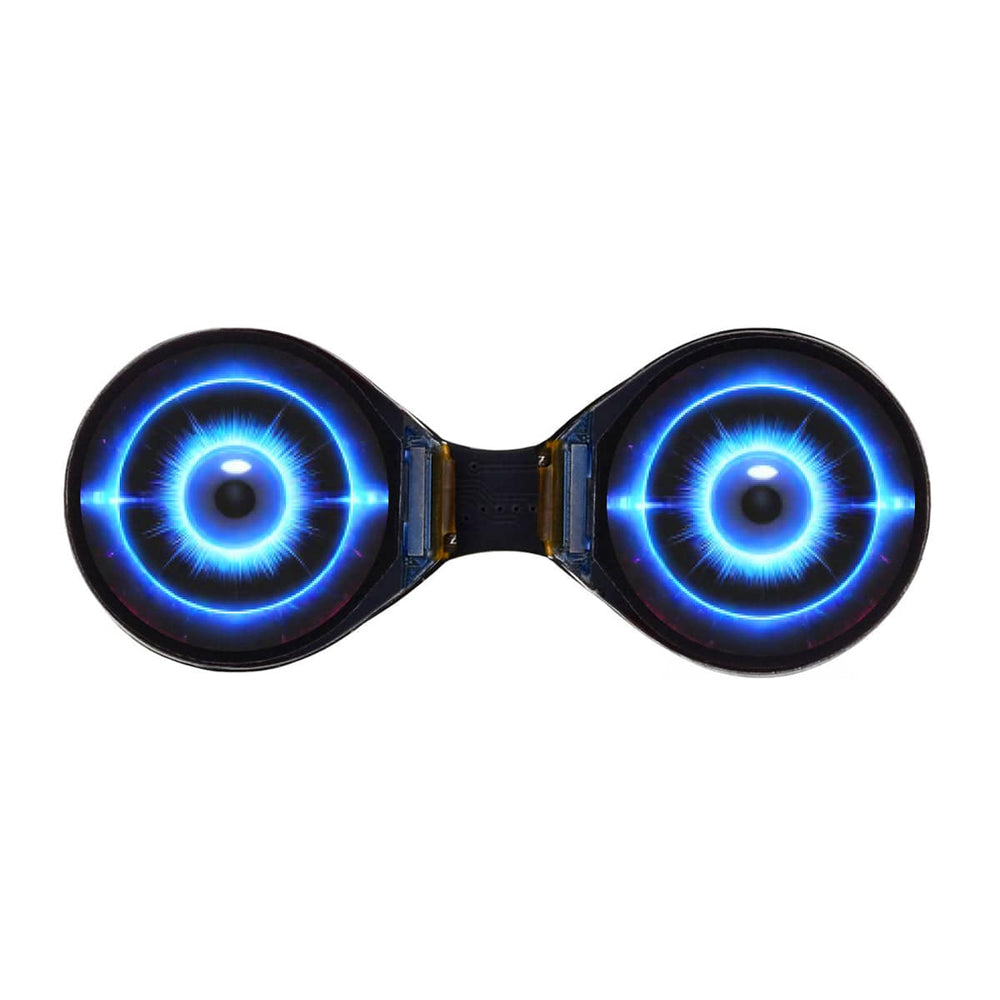

I can see you….looking at this handy little double-eye display, that you can use with any project that needs moving eyes or a wearable for your next cosplay idea!?

It has two round 0.71″ IPS displays, each with a colourful 160 x 160 resolution. It uses the GC9D01 driver and communicates using an SPI connection, making it compatible with controllers like a Raspberry Pi Pico, Arduino and ESP32.

I swear those eyes followed me when I moved…

Board is NOT included

Features

  • The double-eye LCD module consists of two 0.71″ round IPS LCDs, an IPS panel and a wide viewing angle
  • 160 x 160 resolution, 65K colours, clear and colourful display
  • SPI interface, minimises required IO pins, supports controller boards like Raspberry Pi/Arduino

Specifications

Operating Voltage 3.3V / 5V
Communication Connection SPI
Display Panel IPS
Driver GC9D01
Resolution 160 x 160 pixels
Display Size 18 x 18 (mm)
Pixel Pitch 37.5 x 112.5 (??m)

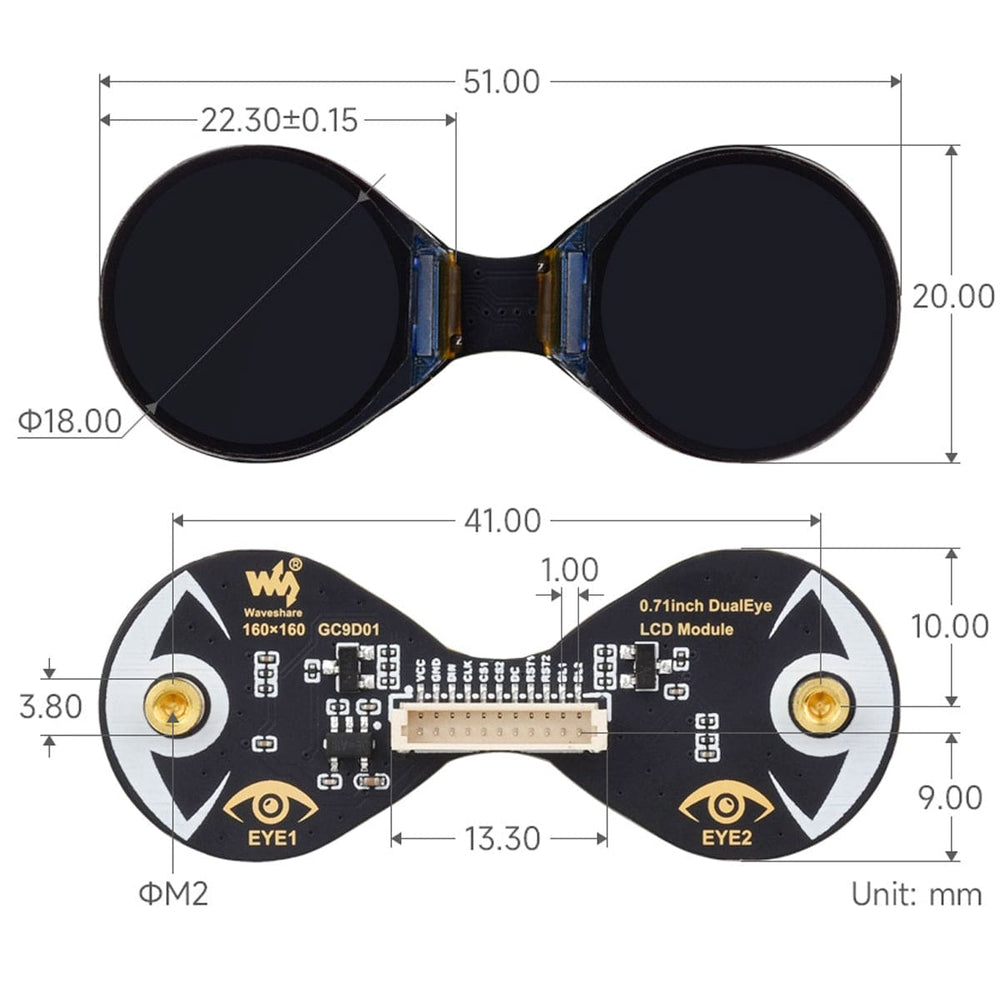

Dimensions 20.00 x 51.00 (mm)

Resources

  • Product Wiki
  • Schematic
  • GC9D01 Datasheet

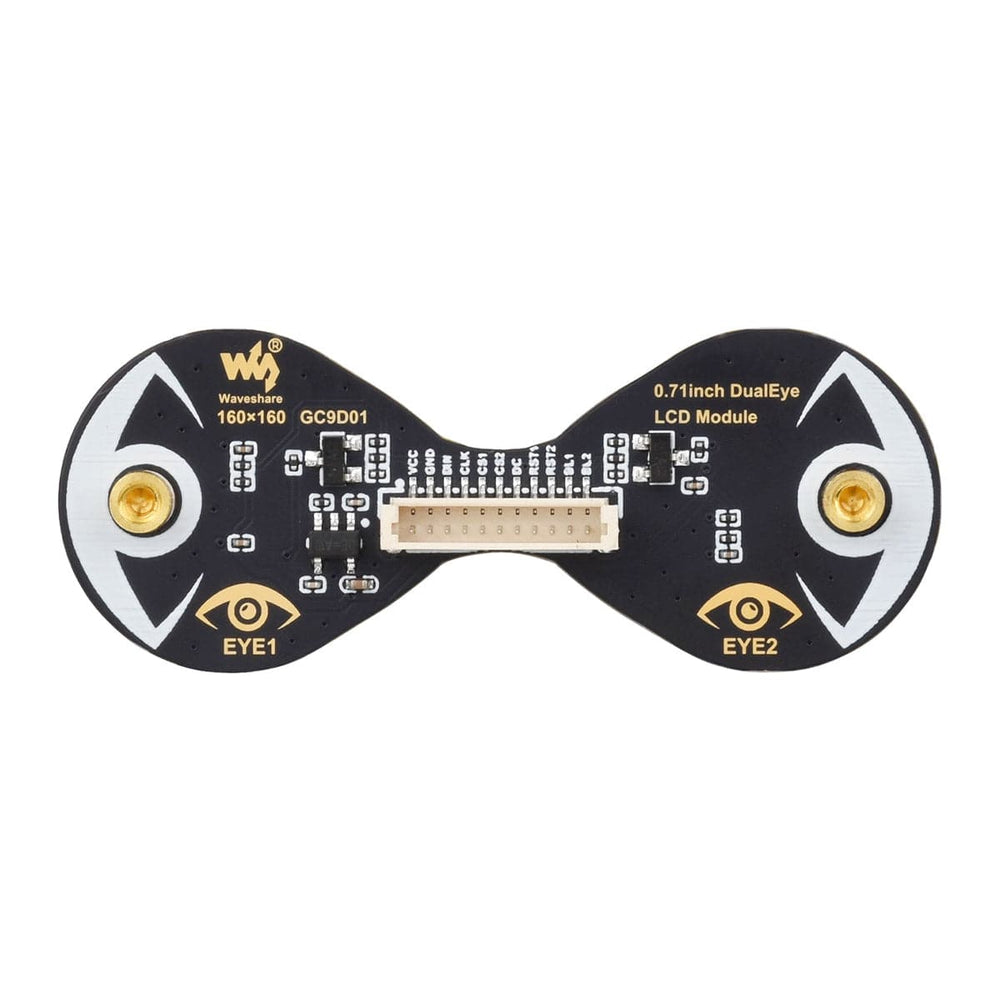

Pinout

Package Contents

  • 1x 0.71″ Dual Eye LCD Module
  • 1x SH1.0 11-pin Cable
  • 2x Convex Lens?
