Description

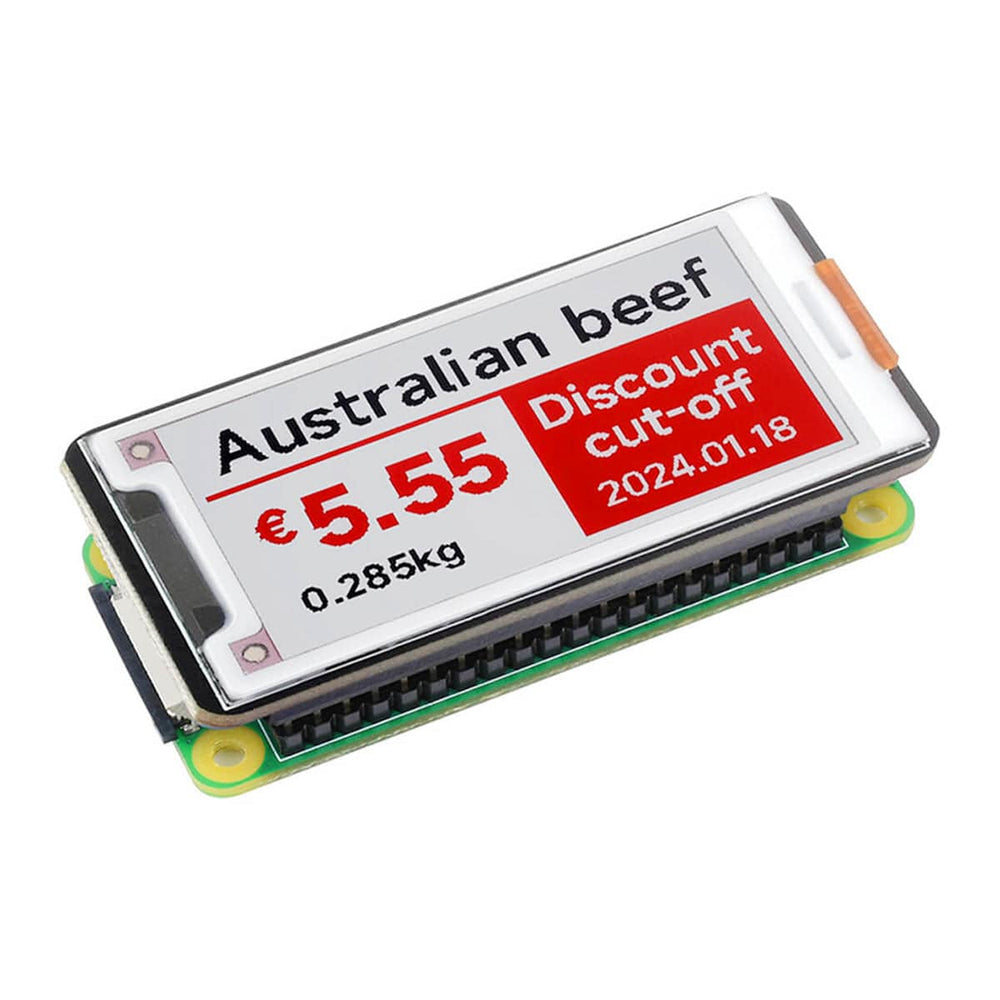

2.15inch E-Paper Tri Colour HAT+ for Raspberry Pi (296 x 160)

This 2.15″ e-Paper HAT is a tri-colour (Red/Black/White) display with no backlight, and retains the last displayed image for long periods even when powered off, making it very energy-efficient. Power is only needed during refreshes, meaning power consumption is at a minimal level. The display also has a wide 170?? viewing angle for clear visibility from different areas of viewing.

It also has a standard Raspberry Pi 40-pin GPIO extension header, making it compatible with?Raspberry Pi series boards, Jetson Nano, and RDK X3. The SPI connection allows it to work with other controller boards like?Arduino?and STM32, while a built-in voltage translator provides compatibility with both 3.3V and 5V MCUs. Included are online development resources and a manual, which make it easy to get started!

We also have a quad-colour?version here

If you’re looking for the Raw display version,?click here?to find it in our store.

Note: Raspberry Pi is NOT included

Features

  • No backlight, keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / RDK X3 / Arduino / STM32)
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano, RDK X3
  • Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
  • SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32, etc.
  • Voltage translator, compatible with 3.3V / 5V MCUs

Specifications

Operating Voltage 5V
Interface 3-wire SPI, 4-wire SPI
Outline Dimensions 65 x 34 (mm)
Display size 48.10 x 26 (mm)
Dot Pitch 0.1625 x 0.1625 (mm)
Resolution 296 x 160 pixels
Display Colour Red/Black/White
Greyscale 2
Full Refresh Time 23s
Refresh Power <15mW
Standby Current <0.01uA (almost none)
Viewing Angle >170??

Resources

  • Product Wiki
  • Schematic

Pinout

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output pin

Package Contents

  • 1x 2.15″ e-Paper HAT+
  • 1x GH1.25 9-pin cable
  • 1x Screws pack
