3.5inch Capacitive Touch IPS LCD Display (320 x 480)

This 3.5″ Capacitive Touch LCD is a small, vibrant, and colourful screen with a resolution of 320 x 480 pixels and 262K colours. It uses an IPS panel which gives the screen a faster response, wider viewing angles, excellent colour accuracy and screen consistency. The touch panel has multi-touch and has an FT6336U touch control chip inside, making it easy to interact with.

There is a handy SD card slot on the back to store your files and photos. The board uses a 4-pin SPI for the display and I2C for touch control, making it simple to use with devices like Raspberry Pi or Arduino. Speaking of connections, there is also a 15-pin connector and an 18-pin FPC slot for connecting the display to whichever compatible board you choose.

Features

  • 320 x 480 resolution, 262K colours, clear and colourful displaying effect
  • High touch screen transmittance, fast response and long lifetime
  • Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
  • SD card slot for storing more pictures, videos, music, etc.

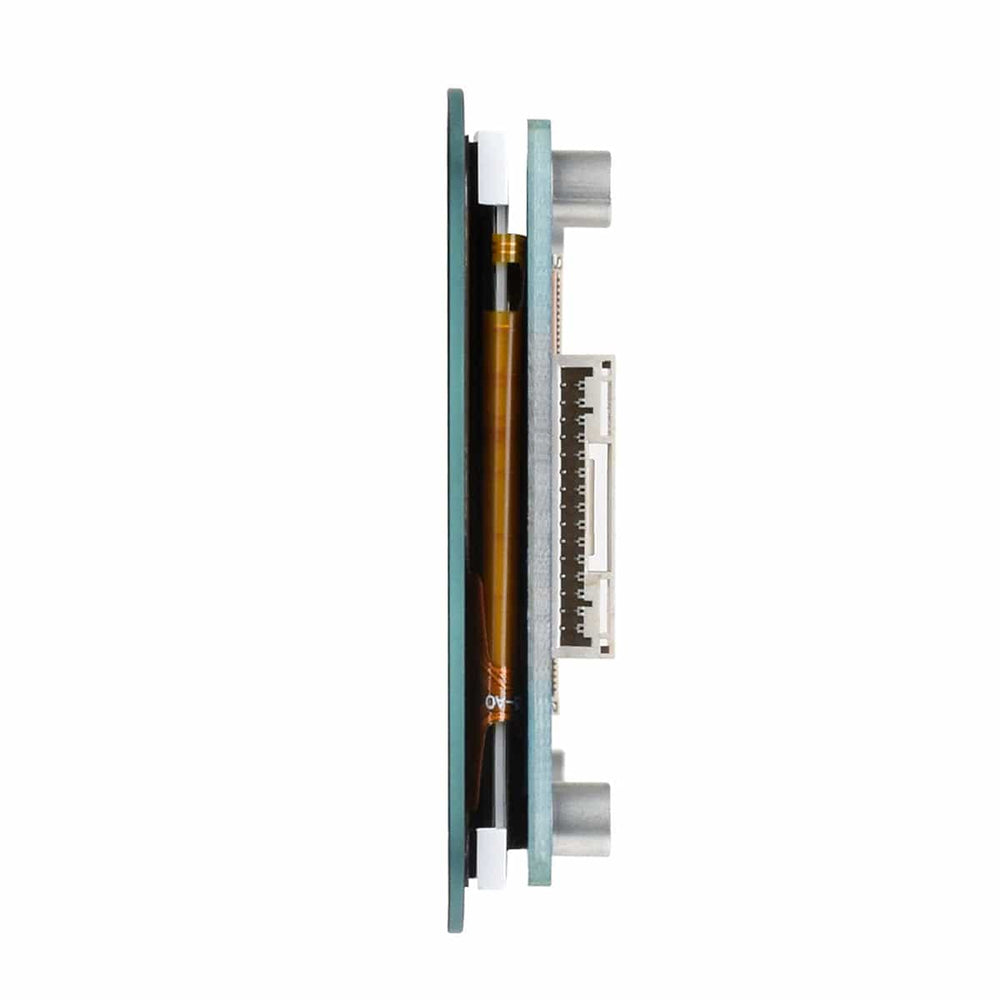

  • 15-pin connector and 18-pin FPC slot for connecting the LCD module to the host board
  • Voltage translator, compatible with 3.3V / 5V operating voltage
  • Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)

Connection Example – Raspberry Pi 5

Note: Raspberry Pi 5 is NOT included

Specifications

Operating Voltage 3.3V / 5V
Display Driver ST7796S
Display Interface 4-wire SPI
Display Panel IPS
Pixel Pitch 0.051 x 0.153 (mm)
Display Size 48.96 x 73.44 (mm)
Resolution 320 x 480 pixels
Touch Driver FT6336U
Touch Interface I2C
Touch Type Capacitive
Touch Points Two-point touch

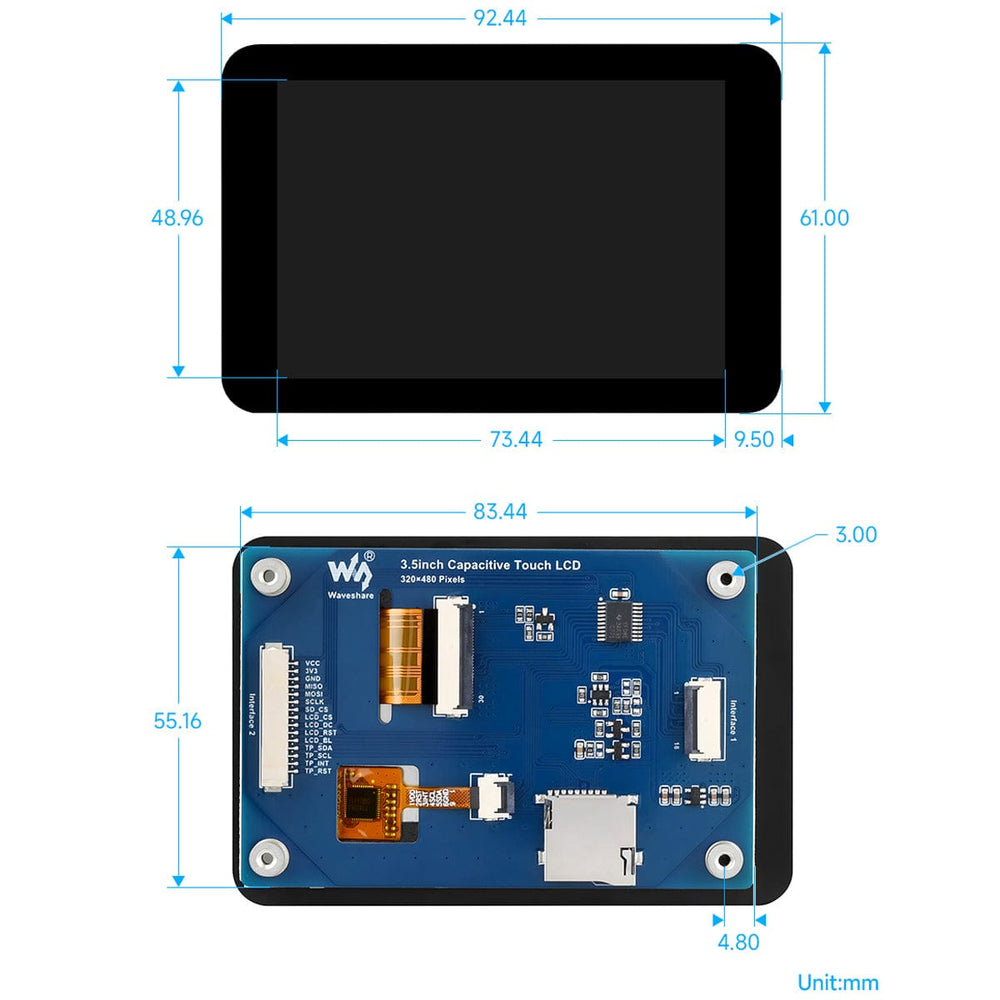

Module Size 61.00 x 92.44 (mm)

Resources

  • Product Wiki
  • Schematic

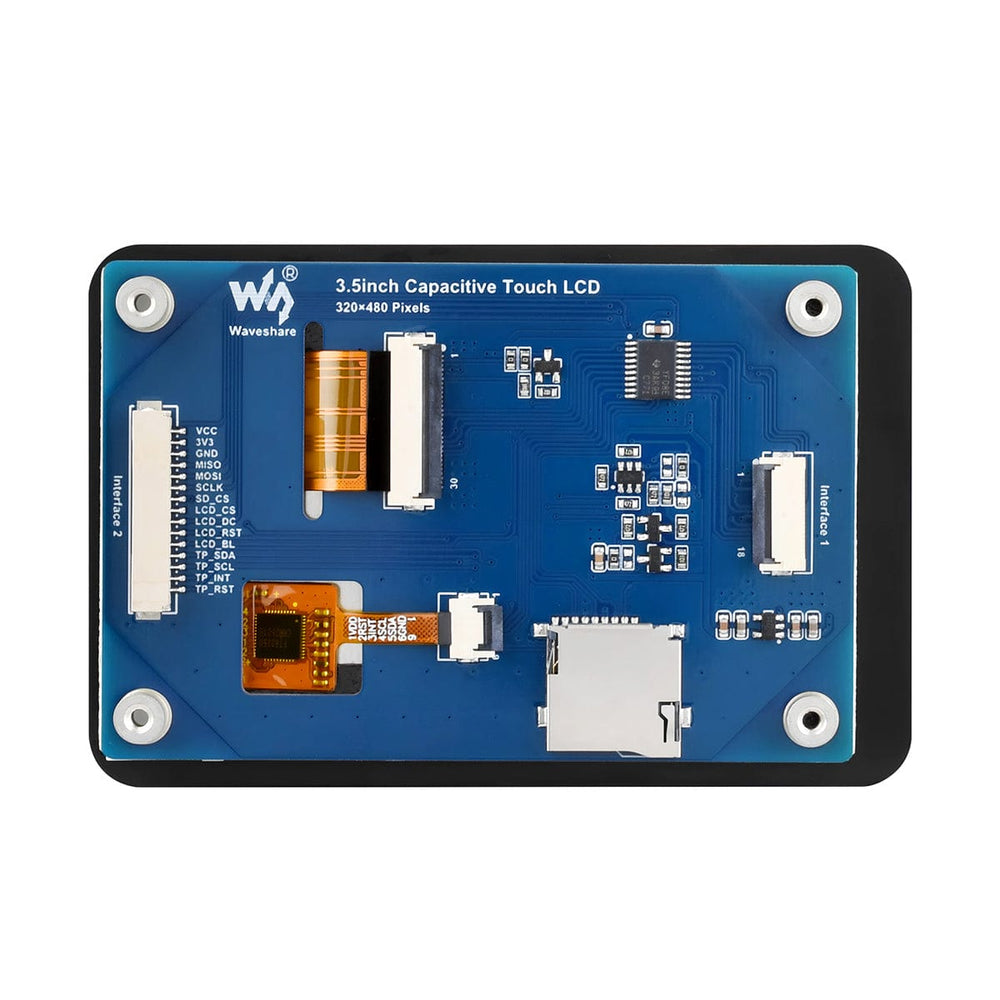

Pinout – 15-pin Connector and 18-pin FPC Slot

Pin Description 15-pin
Pin No.		 18-pin
Pin No.
VCC Power (3.3V / 5V input) 1 1
3V3 Power (3.3V input) 2 NC
GND Ground 3 3
MISO SPI MISO pin 4 6
MOSI SPI MOSI pin 5 5
SCLK SPI CLK pin 6 4
SD_CS TF card chip selection, low active 7 10
LCD_CS LCD chip selection, low active 8 9
LCD_DC LCD data/command selection (high for data, low for command) 9 7
LCD_RST LCD reset pin, low active 10 8
LCD_BL LCD backlight pin 11 2
TP_SDA Touch panel data pin 12 14
TP_SCL Touch panel clock pin 13 13
TP_INT Touch panel interrupt pin 14 15
TP_RST Touch panel reset pin, low active 15 12

Package Contents

  • 1x 3.5″ Capacitive Touch LCD
  • 1x GH1.25 15-Pin Cable
